Carrier AC Installation in Alhambra, CA

How do you size a Carrier AC for an Alhambra home?

We open with a Manual J load calculation rather than a rule of thumb. Alhambra's housing runs small and tightly packed - 1920s Spanish Colonial revival and Craftsman bungalows often sit at 1,000 to 1,500 square feet - so the true cooling load frequently comes in at 1.5 to 2.5 tons. The dense-grid heat-island bump counts, but so do the load-reducers: a Craftsman's deep eaves, plaster walls carrying real thermal mass, and the old street trees along the lettered avenues. Size a condenser too large and it short-cycles, never strips humidity, and burns its capacitor and contactor out faster in our heat. On these homes, right-sizing is the biggest single lever you have on comfort and efficiency.

Which Carrier AC tier fits my budget and house?

Carrier splits the lineup into three tiers, and the right one depends on how long you will stay and how hot your specific micro-lot runs.

A variable-speed Infinity only delivers its efficiency with the Infinity System Control wired in. Pairing a Greenspeed condenser with a basic thermostat wastes the upgrade.

What does Title 24 require on an Alhambra AC install?

California's energy code raises the bar past the federal floor. In the DOE Southwest region, a split AC under 45,000 BTU has to reach 14.3 SEER2 / 11.7 EER2. Layered on that, Title 24 generally calls for refrigerant-charge and airflow verification on new and replacement split systems, and any duct alteration brings duct-sealing signed off by an independent HERS rater in the field. We fold the permit and the HERS test into the quote so the job clears inspection on the first pass. Our SEER2 and rebates guide lays out the live minimums and which California incentives still have money left.

What does install day look like on a narrow lot?

Alhambra's gridded lettered streets and shared driveways make access the hard part. The job runs in a set order:

1. Recover and disconnect. We EPA-recover the old refrigerant, then disconnect electrical and the line set. The old condenser comes out - often a hand-carry through a 30-inch side yard on a 1920s lot.

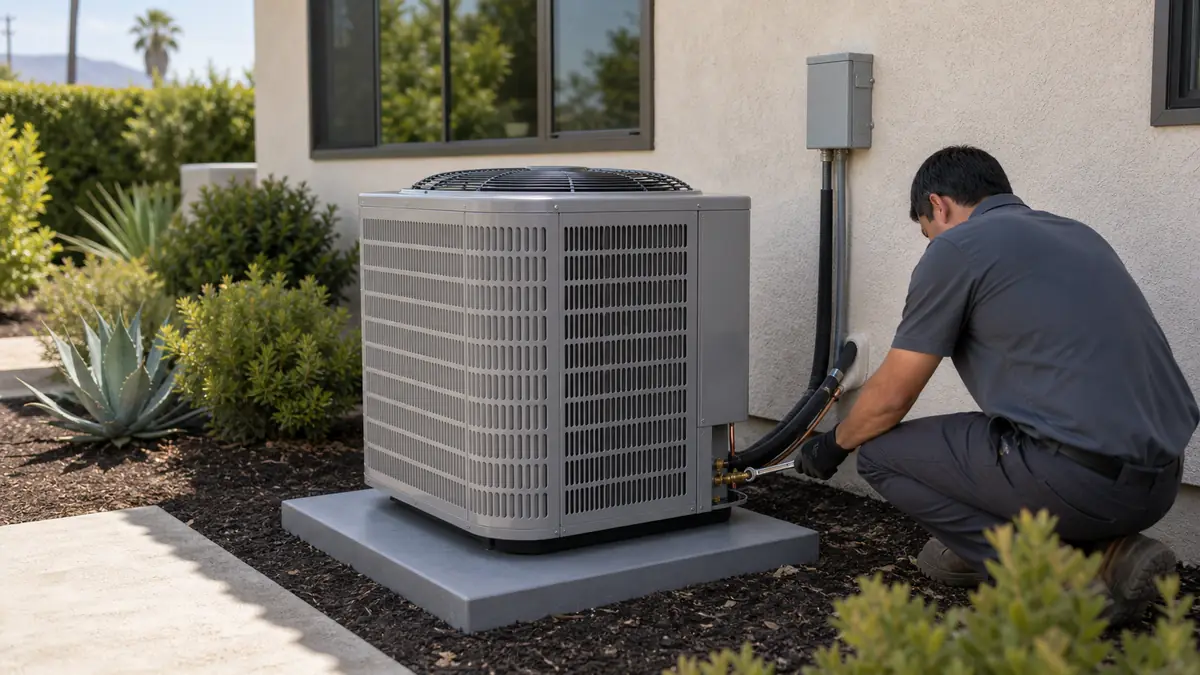

2. Set the pad and condenser. A level composite pad keeps the new 26-series unit from settling into soft SGV soil. We position it for service clearance and to keep noise off a neighbor's window, which matters on these tight lots.
3. Line set and coil. We reuse a sound copper line set or run new, braze under nitrogen to keep the inside of the tubing clean, and match the indoor coil to the condenser tonnage so the system is a sealed, matched pair.
4. Evacuate and charge. A deep vacuum below 500 microns pulls moisture and non-condensables out, then we weigh in the factory charge and trim by subcooling - the Title 24 refrigerant-charge step.
5. Commission and verify. Start the system, confirm airflow (the HERS airflow check), wire and walk you through the Infinity or Cor control, and register the Carrier warranty before we leave.

We protect original plaster and hardwood on the indoor side throughout. A clean, matched, properly evacuated install is what lets a Carrier condenser actually reach its rated SEER2 instead of limping along undercharged.

What drives the price of an Alhambra AC install?

The $5,000 to $12,000-plus range moves on a handful of real cost drivers, not a sales tier alone:

• Tonnage and tier. A 2-ton Comfort 14 (26SCA4) sits near the floor; a 4-ton Greenspeed Infinity (24VNA6) with the Infinity control sits near the ceiling.
• Coil and line set. A matched indoor coil is required; a long or aged line set that needs replacing adds copper and labor.
• Electrical. An undersized disconnect or panel breaker, common on un-upgraded 1920s service, may need an upgrade to carry an inverter unit.
• Ductwork. If a duct inspection shows leaks or undersized returns, sealing or replacement runs $1,900 to $6,000 - and triggers HERS duct verification under Title 24.
• Permit and HERS. The City of Alhambra permit and the independent HERS rater's field verification are line items we fold into the quote, not surprises.

Right-sizing is also a cost lever the other direction: an honestly sized 2-ton unit costs less to buy, install, and run than the oversized 4-ton box a rule-of-thumb quote would push.

How much cooling does an Alhambra home actually pull?

Cooling, not heating, sets the equipment size here, so the Manual J leans on the summer numbers. Alhambra's 1 percent design day sits near 94 to 95 F dry-bulb, and the older rule of one ton per 400 to 600 square feet badly overshoots a tight, shaded bungalow. Worked example: a 1,200 square foot Emery Park Craftsman with plaster walls, modest attic insulation, and west-facing windows behind a mature street tree typically computes to roughly 21,000 to 27,000 BTU - a 2-ton 26SCA5 Comfort 16, sometimes a 2.5-ton, never the 4-ton box a square-footage shortcut would size. The load-drivers that move the number are window area and orientation (west glass on a lettered-street facade is the single biggest gain), ceiling height in a 1920s home, and attic R-value. We feed your real square footage, window schedule, and insulation into the calc, then pick the smallest condenser that carries the design-day load, because a unit that runs long, steady cycles in the heat cools more evenly, strips more humidity, and outlasts an oversized one that hammers its own capacitor and compressor.
